back button Foxton Locks and the Inclined Plane

The Foxton Locks staircase - 10 locks in all - drops the canal 75 feet down a hill. Also at this site is the Inclined Plane - which was used for a dozen years or so, but sadly closed in 1910. This engineering marvel raised and lowered boats in caissons up and down the hill in a fifth of the time it took to use the locks.



  A Picture   A Picture

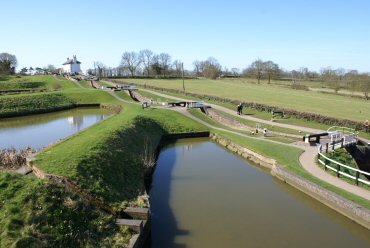

  The view down the Foxton locks staircase from the top.   A side view, with the side-pounds for each lock clearly visible.

  A Picture   A Picture

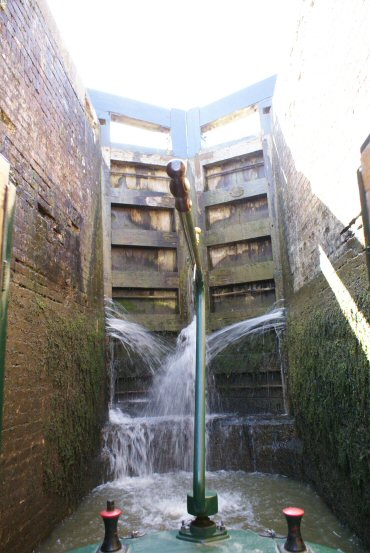

  View from the bottom.   A helmsman's eye view - staircase locks have extra-tall gates!

  A Picture   A Picture

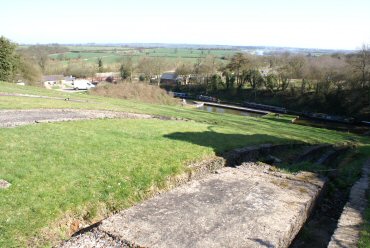

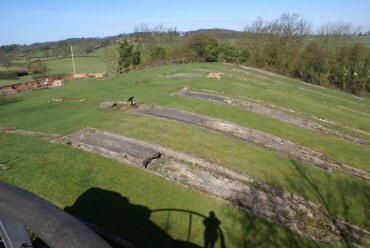

  The inclined plane - looking down to where the caissons docked at the base.   The top of the incline, where the 1-in-4 gradient eased.

  A Picture   A Picture

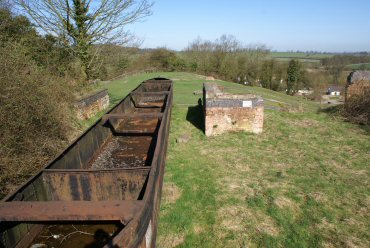

  What the caissons would have looked like.   An old butty in position where it would have entered the caisson before descending.
